3Step Control Discharger Batching Weighing & Re-Checking
FS-2101C Weighing Indicator is particularly suited for weight and measures approved
applications such as a automatic Discharging Weighing, a filling Weighing, Drum Filler through
Bulk, Preset-Drib, Preset-Fall, 3Step Control Relay.
FS-2101C also is available in a robust Aluminium housing for front panel mounting.
Particularly optimum use for interference suppression and long-term stability in harshest
environment.
Features
● A Separate Preset, Drib, Fall Set Display
● Discharging 2Step, Feeding 1Step Control( 1,2,3,4 Method)
● “ Auto Zero and Auto Tare “
● Simple Comparison Control(Limit Mode), Sequency Control(Packer Mode),
Discharging 2Step Control/Feeding Control 1Step( Discharging Mode), Simple Comparison
Control(High/Low Linkage)
● Standard RS-232C/Current Loop Interface Built In for PC,PLC, External Equipment.
● Bulk, Preset- Drib, Preset-Fall Preset, 3Step Control Relay.
● Auto Free Fall Compensation
● 1St, 2nd, 3rd./Feeding, Finish/Low, High/Low, Empty 6pcs Relay Built In.
● Analog Out(Option) Zero / Span Adjustable by Function Key.
<New improvement point>
♦ A compact Appearance by DIN regulations ( DIN 186 x 92 Panel Insertion )
♦ Set up to Max. 1/30,000 display resolution
♦ Function available to change the unit value such as kg, ton, lb, g
( In case of Serial Interface & Printer )
♦ It can track the based zero value without adjusting the DIP-Switch in Calibration
♦ Selectable A/D Conversion Speed(25,30,50,60,100,150,180,200,240 Times/Sec)
(SET UP F94)
♦ Available for 3kinds of different Interface(RS-232C,RS-422,Current Loop) at the same time
♦ Available to use the same load cell Until Max. 16pcs ( 300Ω standard)
Specification
1. Analog Input & A/D Conversion Section
| Input Sensitivity |
0.2 μ V/D |
| Max. Load cell Input |
1mV/V ~ 5mV/V |
| Load cell excitation |
DC 5V( ± 5V) |
| Max. Input Voltage |
32 mV |
| Temperature Coefficient |
± 5 ppm / °C |
| Input Noise |
± 0.5 μv P.P |
| Input Impedance |
More than 10 ΜΩ |
| A/D Converter |
500,000 Count |
| Non-Linearty |
0.003% F.S |
| A/D Conversion Speed |
25,30,50,60,100,120.,150,180,200,240Times/Second |
2. Digital Section
| Max. Display |
“ 999999” |
| A Digit |
x1, x2, x5, x10, x20, x50 |
| Display |
7-Segment, 6digit Highly bright fluorescent(LED Type) |
| Character Size |
Numerical Key and Function Key(0-9,CLR,SET/CLR) |
| Keypad |
More than 20Years |
3. General Section
| Power |
AC110 / 220V (±10%), Free Voltage 50 / 60Hz, 10VA |
| Indicator Weight |
Net 1.2Kg, BOX 2.0Kg |
| Temperature |
-10 °C ~ 40°C |
| Moisture |
85%RH MAX (Non-Condensing) |
| Dimension |
198 x 99 x 101mm, Install Size 186 x 92mm |
4. Option Section
- Basic standard 1 : SERIAL INTERFACE : RS-232C
- Basic standard 2 : CURRENT LOOP
| Option 3 |
Parallel I/F : BCD Out Weight |
| Option 4 |
Serial I/F : RS422, RS485 |
| Option 5 |
Analog Voltage Out (0-5V/ 0-10V) |
| Option 6 |
Analog Current Out (4-20mA) |
| Option 7 |
Print I/F : CENTRONICS Parallel |
| Option 10 |
Parallel I/F : BCD In PART |
| Option 11 |
Serial I/F : CH-A, CH-B Extension CH-A = RS-232C, Current Loop CH-B = RS-232C, RS422, RS485 |

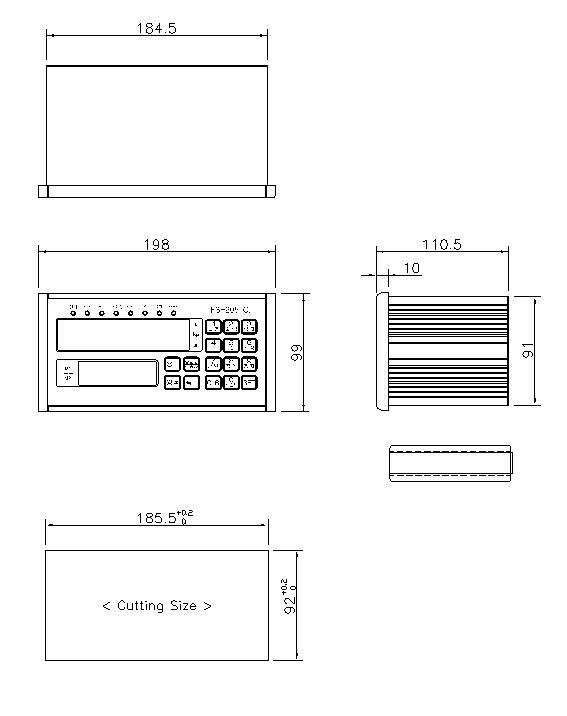

Cutting size

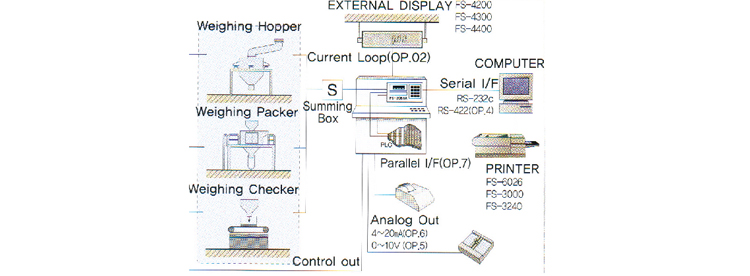

Applications
