Hopper & Packer & Drum Filler Weighing Control
FS-2000C Weighing Indicator is particularly suited for weight and measures approved applications such as a Feed Weighing, Discharging Weighing, Accumulated Weighing, Dynamic Weight Checking in Motion through High, Low 2Step Control Relay.
FS-2000C also is available in a robust Aluminium housing for front panel mounting.
Particularly optimum use for interference suppression and long-term stability in harshest
environment.
Features
● A Dynamic Check Weighing Function in motion
● Automatic Filling Weighing and Discharging Weighing
● Two Display and High, Low Set Display Separately.
● Simple Comparison Control(Limit Mode), Sequencer Control(Packer Mode), Motion Weighing Control(In Motion Checker Mode)
● Standard RS-232C/Current Loop Interface Built In for PC,PLC, External Equipment.
● High, Low 2Step Control Relay.
● Auto Free Fall Compensation
● High, Low, Finish/Normal, Empty 4pcs Relay Built In.
● Analog Out(Option) Zero / Span Adjustable by Function Key.
<New improvement point>
♦ A compact Appearance by DIN regulations ( DIN 186 x 92 Panel Insertion )
♦ Set up to Max. 1/30,000 display resolution
♦ Function available to change the unit value such as kg, ton, lb, g
( In case of Serial Interface & Printer )
♦ It can track the based zero value without adjusting the DIP-Switch in Calibration
♦ Selectable A/D Conversion Speed(25,30,50,60,100,150,180,200,240 Times/Sec)
(SET UP F94)
♦ Available for 3kinds of different Interface(RS-232C,RS-422,Current Loop) at the same time
♦ Available to use the same load cell Until Max. 16pcs ( 300Ω standard)
Specification
1. Analog Input & A/D Conversion Section
| Input Sensitivity |
0.2 μ V/D |
| Max. Load cell Input |
1mV/V ∼ 5 mV/V |
| Load cell excitation |
DC 5V( ± 5V) |
| Max. Input Voltage |
32 mV |
| Temperature Coefficient |
± 5 ppm / °C |
| Input Noise |
± 0.5 μv P.P |
| Input Impedance |
More than 10 ΜΩ |
| A/D Converter |
500,000 Count |
| Non-Linearty |
0.003% F.S |
| A/D Conversion Speed |
25,30,50,60,100,120,150,180,200,240Times/Second |
2. Digital Section
| Max. Display |
"999999" |
| Min. Division |
x1, x2, x5, x10, x20, x50 |
| Display unit |
7-Segmet, 6digit Highly bright fluorescent(LED Type |
| Key board |
Numerical Key and Function Key(0-9, CLR, SET/CLR) |
| Date Back-up |
More than 20Years |
3. General Section
| Power |
AC 110 / 220V(± 10%), Free voltage 50/60Hz, 10VA |
| Indicator Weight |
Net 1.2Kg, Packing 2.0Kg |
| Operating Temperature |
-10 °C ~ 40°C |
| Operating Humidity |
85% RH MAX (Non-Condensing) |
| External Dimension |
198mm x 99mm x 101mm, Install Size 186mm x 92mm |
4. Option Section
- Basic standard 1 : SERIAL INTERFACE : RS-232C
- Basic standard 2 : CURRENT LOOP
| Option 3 | Parallel I/F : BCD OUT Weight |
| Option 4 | Serial Interface : RS-422, RS-485 |
| Option 5 | Analog Output (0~5V or 0V ~10V) |
| Option 6 | Analog Output (4~20 mA) |
| Option 7 | Print I/F : CENTRONICS Parallel |
| Option 10 | Parallel I/F : BCD In PART |
| Option 11 | Serial I/F : CH-A, CH-B ExtensionCH-A = RS-232C, Current Loop
CH-B = RS-232C, RS422, RS485 |

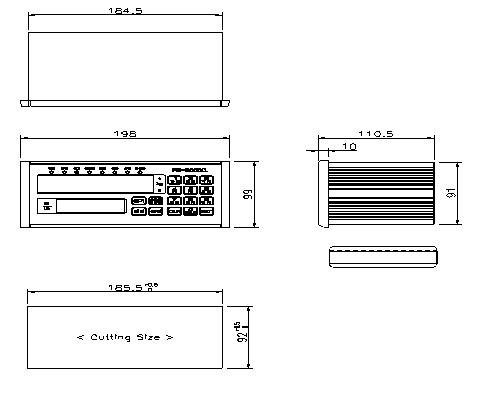

Cutting size

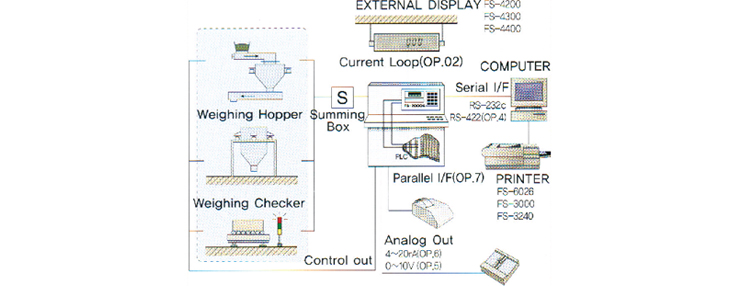

Applications
