Compact Weighing Indicator
FS-8000C Weighing Indicator is particularly suited for weight and measures approved
applications such as Platform Scale, Truck Scale, Compression Tester, Strain Tester so on.
FS-8000C also is available in a robust Aluminium housing for front panel mounting.
Particularly optimum use for interference suppression and longterm stability in harshest
environment.
Features
● Bigger 7 Segment LED Display(12mm(w) x 20mm(h)), Red, Green, Orange Color Adjustable
● Easy and Comfortable Calibration Operations(Zero Adjust Range: -4 mV ~ +42.0 mV)
● High Non-Linearty Range( 0.005% of Full Scale.)
● 3Kinds of Display Color Changeable according to the weight Setting
● Standard Time Chip Built in for configuration of Remote Display and Printer.
● Standard RS-232C/Current Loop Interface Built In for PC,PLC, External Equipment.
● 4 ~20mA, 0~10V Analog Output Adjustable
● Weight Auto Back Up Function depending on Zero Adjust Range.
<New improvement point>
♦ A compact Appearance by DIN regulations ( DIN 186 x 92 Panel Insertion )
♦ Set up to Max. 1/30,000 display resolution
♦ Function available to change the unit value such as kg, ton, lb, g
( In case of Serial Interface & Printer )
♦ It can track the based zero value without adjusting the DIP-Switch in Calibration
♦ Selectable A/D Conversion Speed(25,30,50,60,100,150,180,200,240 Times/Sec)
(SET UP F94)
♦ Available for 3kinds of different Interface(RS-232C,RS-422,Current Loop) at the same time
♦ Available to use the same load cell Until Max. 16pcs ( 300Ω standard)
Specification
1. Analog Input & A/D Conversion Section
| Input Sensitivity |
0.2 μ V/D |
| Max. Load cell Input |
1mV/V ~ 5 mV/V |
| Load cell excitation |
DC 5V (± 5 V) |
| Max Input voltage |
32mV |
| Temperature Coefficient |
± 5 ppm / ℃ |
| Input Noise |
± 0.5 μv P.P |
| Input Impedance |
More than 10 ΜΩ |
| A/D Converter |
520,000 Count |
| Non-Linearty Range |
0.003% F.S |
| A/D Conversion Speed |
25,30,50,60,100,120.,150,180,200,240Times/Second |
2. Digital Section
| Max. Display |
"999999" |
| Min. Division |
x1, x2, x5, x10, x20, x50 |
| Display Unit |
7-Segment, 6digit Highly bright fluorescent(LED Type) |
| Key Board |
Numerical Key and Function Key(0-9,CLR,SET/CLR) |
| Data Back-up |
More than 20Years |
3. General Section
| Power Voltage |
AC110 / 220V (±10%), Free Voltage 50 / 60Hz, 10VA |
| Indicator Weight |
NET 1.2kg BOX 2.0kg |
| Operating Temperature |
-10 °C ~ 40°C |
| Operating Humidity |
85%RH MAX (Non-Condensing) |
| External Dimension |
198 x 99 x 101mm, Install Size 186 x 92mm |

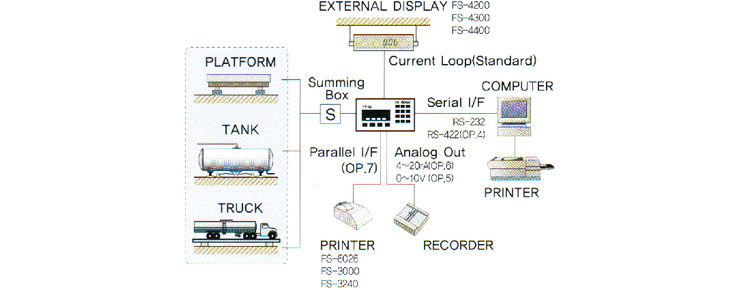

4. Option Section
- Basic standard 1 : SERIAL INTERFACE : RS-232C
- Basic standard 2 : CURRENT LOOP
| Option 3 |
Parallel I/F : BCD Out Weight |
| Option 4 |
Serial I/F : RS422, RS485 |
| Option 5 |
Analog Voltage Out (0-5V / 0-10V) |
| Option 6 |
Analog Current Out (4-20mA) |
| Option 7 |
Print I/F : CENTRONICS Parallel |
| Option 10 |
Parallel I/F : BCD In PART |
| Option 11 |
Serial I/F : CH-A, CH-B Extension CH-A = RS-232C, Current Loop CH-B = RS-232C, RS422, RS485 |

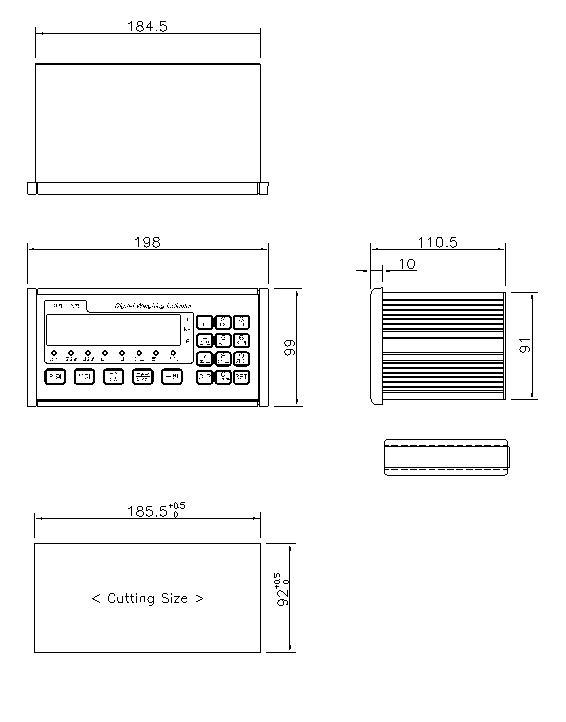

Cutting size
